12.3" electronic rear view mirror blind spot detection monitor system
Best choice to support drivers view & detect blind spots with warning, the system can compatible with various safety driving products. We welcome your inquiry!

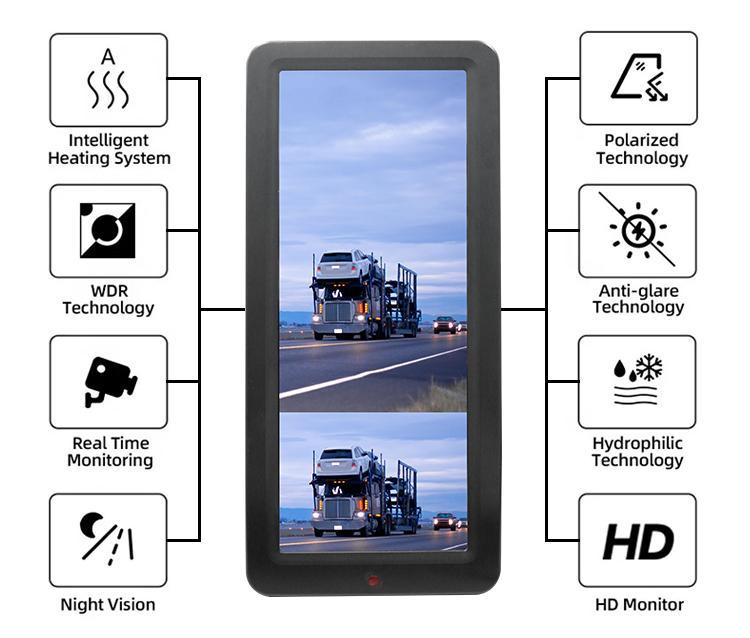

Features
1. 4CH x 1080P vedio input/output
2. Compatible with hybrid input of CVBS and AHD signals
3. Automatic backlight adjustment.
5. Driving video recording starts once the syestem is powered on, driver will be reminded by the screen display if the camera is disconnected or no SD card inserted.
6. Resolution ratio: 1920RGB(H)X720(V).
7. Brightness: 700cd/m2.
8. EMC-R46 quality standard.
9. Super wide voltage : DC 12V-32V
10. Customized develop with specific requirement
2. Compatible with hybrid input of CVBS and AHD signals
3. Automatic backlight adjustment.
5. Driving video recording starts once the syestem is powered on, driver will be reminded by the screen display if the camera is disconnected or no SD card inserted.
6. Resolution ratio: 1920RGB(H)X720(V).
7. Brightness: 700cd/m2.
8. EMC-R46 quality standard.
9. Super wide voltage : DC 12V-32V
10. Customized develop with specific requirement
![](http://v4-upload.goalsites.com/625/1642385621_1203寸屏主图2.png)
Specifications
12.3 inch E-Mirror Monitor Specifications:
![](//v4-upload.goalsites.com/625/1642385676_12_3 inch mirror (3).png)
Dual lens side view camera Specifications:
Screen type | TFT |
Screen size | 12.3"(8:3) |
Screen Resolution ratio | 1920 RGB (H)×720(V) |
Video input | 2-way HD, 2-way SD, 1-way HD + 1-way SD, compatible with both PAL and NTSC input |

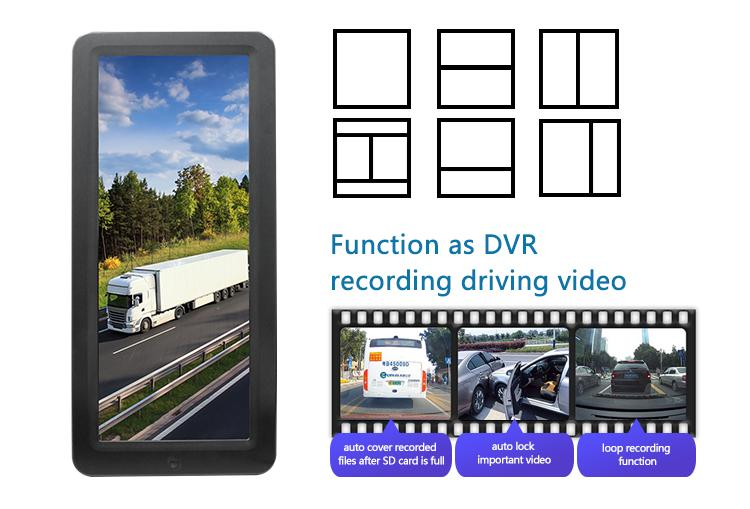

Preview function | 12 kinds of multi display mode splitting Preview |
Video resolution | 1920*1080 |
Video quality | Super clear, high definition, standard, ordinary level, total 4 video output modes are available |
recording mode | Power on automatic recording |
audio input | Supports 1 channel audio input,CH1 Aviation connector(optional) |
Memory card | TF card, maximum support 512G, cycling recording |
Upgrade mode | support upgrade system by TF card |
input voltage | DC:+12V ~+30V |
working temperature | -30℃ to +70℃ |
working relative humidity | 20% to +80%(RH) |
![](http://v4-upload.goalsites.com/625/1642385676_12_3 inch mirror (3).png)
Dual lens side view camera Specifications:
image Sensor | SONY IMX307 (AHD) |
TV Mode | PAL/NTSC |
Image Sensor | 1/2.8 inch |
Operation voltage range | DC12V(7.5-16V) |
working current | 94mA±10mA |
Power Consumption | 1.128W DC12 V |
Video Output | 1.3±0.2Vpp 75Ω |
USEFUL PIXELS | 1920*1080 |
Minimum lllomination | 0.01Lux |
Signal to Noise ratio | 46dB |
resolution ratio | 1080p |
Operation Temperature | -20℃~ +70℃ |
Storage Temperature Lens angle |
-40℃~+85℃ Horizontal 74°/56° |
Applications
![](http://v4-upload.goalsites.com/625/1642386077_12_3 inch mirror.png)
![](http://v4-upload.goalsites.com/625/1642386097_12_3 inch Electronic rear view mirror for bustruckheavy duty vehicle -04.png)
![](http://v4-upload.goalsites.com/625/1642386113_12_3 inch mirror (2).png)
![](http://v4-upload.goalsites.com/625/1642386166_24小时监控.jpg)
![](http://v4-upload.goalsites.com/625/1642386238_功能7(英).png)
![](http://v4-upload.goalsites.com/625/1642386305_12_3 inch mirror.png)
![](http://v4-upload.goalsites.com/625/1642386383_12_3寸 (3).png)
![](http://v4-upload.goalsites.com/625/1642386494_镜像.jpg)
Accessories
![](http://v4-upload.goalsites.com/625/1642386420_12_3 inch Electronic rear view mirror for bus truck heavy duty vehicle -08.png)
![](http://v4-upload.goalsites.com/625/1642386435_12_3 inch Electronic rear view mirror for bus truck heavy duty vehicle -011.png)
![](http://v4-upload.goalsites.com/625/1642386472_车型 (3).jpg)
